When Speed Academy decided to build a Mitsubishi Evo 9 Wagon, they chose Annex Suspension coilovers to enhance the vehicle’s performance and handling.
This collaboration was a perfect opportunity for us at Annex to showcase our latest technology on one of the platforms we originally developed years ago. The Evo 8/9 was one of our first suspension projects, and we have come a long way since then. Here’s a look into the research and development efforts behind our Evo 9 Wagon coilovers and why you should consider Annex for your Mitsubishi Evo.
Advanced 3D Scanning for Precision Engineering
One of the key steps in our development process for the Evo 9 Wagon was utilizing advanced 3D scanning technology. By 3D scanning Speed Academy’s Evo Wagon, we obtained incredibly high-fidelity information about the suspension layout. This precision data offers several significant advantages:
- Accurate Motion Ratios: With precise 3D models, we can accurately calculate the motion ratios of the suspension. This ensures that our coilovers are perfectly tuned to the unique characteristics of the Evo 9 Wagon.
- Optimized Spring Packaging: Understanding the exact packaging requirements for the springs allows us to select the best possible springs for performance and durability.
- Future-Proof Development: The detailed 3D scans serve as a reference for future product updates and new developments, ensuring consistency and compatibility over time.

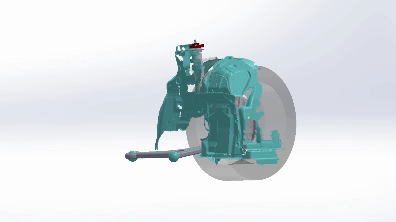

Front

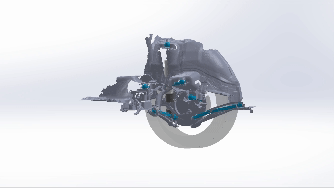

Rear
Tailored Suspension Calculations
Based on the detailed information gathered from the 3D scans, we developed an updated suspension calculator specifically for the Evo 8/9 platform. Given the unique characteristics of the Evo 9 Wagon, including its notably higher rear axle weight, we created separate calculators for the sedan and wagon variants. This distinction ensures that each version receives the most accurate and effective suspension setup.
Optimized Dampers and Springs
Our meticulous research and development process allowed us to define the ideal damper and spring specifications for the Evo 9 Wagon. This includes tailoring the damping curves and shock strokes to the vehicle’s specific needs. Additionally, we examined commonly accepted spring rates to determine if they were truly optimized for the Evo platform.
We are strong proponents of incorporating “flat ride” principles into our suspension packages whenever possible. For the Evo 9 Wagon, this approach was particularly effective. Flat ride suspension design minimizes pitch and roll, providing a more stable and comfortable driving experience, which is crucial for both daily driving and high-performance scenarios.
Why Choose Annex for Your Mitsubishi Evo?
Choosing Annex Suspension coilovers for your Mitsubishi Evo means opting for precision, performance, and innovation. Our dedication to advanced engineering techniques, such as 3D scanning and custom suspension calculators, ensures that our coilovers are finely tuned to your vehicle’s specific requirements. Whether you’re building a track monster or a street-savvy daily driver, our suspension systems offer unmatched reliability and performance.
At Annex Suspension, we are excited to continue pushing the boundaries of what’s possible in automotive suspension technology. Seeing Speed Academy utilize our coilovers in their Evo 9 Wagon build is a testament to our commitment to quality and performance. Stay tuned for more innovative projects and breakthroughs in suspension technology.
